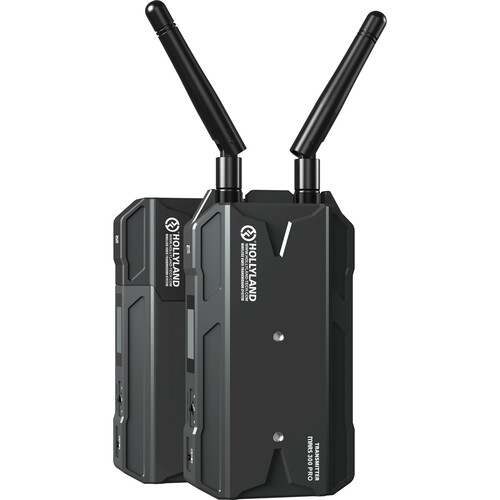

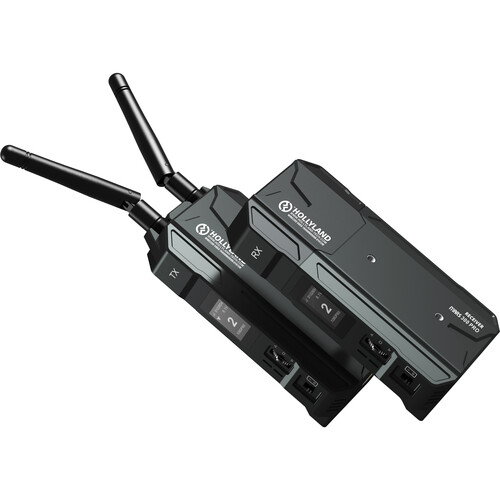

Hollyland Mars 300 PRO HDMI Wireless Video Transmitter/Receiver Set

Hollyland Mars 300 PRO HDMI Wireless Video Transmitter/Receiver Set - Image 2

Hollyland Mars 300 PRO HDMI Wireless Video Transmitter/Receiver Set - Image 3

Hollyland Mars 300 PRO HDMI Wireless Video Transmitter/Receiver Set - Image 4

Hollyland Mars 300 PRO HDMI Wireless Video Transmitter/Receiver Set - Image 5

Live Streaming, Wireless Video Transmitters

Hollyland Mars 300 PRO HDMI Wireless Video Transmitter/Receiver Set

Name: Hollyland Mars 300 PRO HDMI Wireless Video Transmitter/Receiver Set
SKU: 10083
Availability: InStock

KSh 58,000.00

Add to wishlist

Compare

Product Highlights

400′ to RX, 300′ to App Line-of-Sight
Transmit up to 1080p60

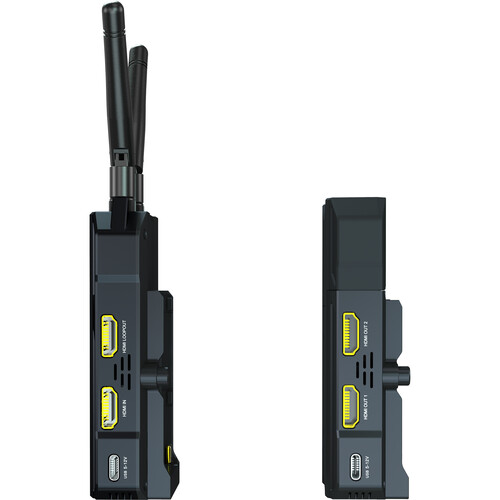

Transmitter: HDMI Input & HDMI Loop-Out
Receiver Has 2 x HDMI Outputs
2 x External Antennas on Transmitter
Real-Time iOS/Android App Monitoring
Integrated L-Series Battery Plates
1/4″-20 Mounting Threads
Power via USB Type-C Port

Add up to 1080p60 wireless video transmission to your gimbal, mirrorless, or DSLR camera rig using the lightweight enhanced Mars 300 PRO HDMI Wireless Video Transmitter/Receiver Set from Hollyland. This enhanced model features two external antennas on the transmitter, including one spare. The transmitter provides a single HDMI input plus an HDMI loop-out for viewing on an onboard monitor and the receiver provides two HDMI outputs. The transmitter features line-of-sight transmission up to 400′ to the receiver and up to 300′ to a Wi-Fi

Compare

Using the Hollyview app for iOS or Android, you can monitor your video transmission in real time via a Wi-Fi connection. The transmitter can transmit to up to one receiver and two apps, or to a total of three apps, simultaneously. The transmitter and receiver are compact in size, feature a bright OLED display for configuration, and they each feature a 1/4″-20 mounting thread. Each can be powered using a USB Type-C source, or they can be powered using a separately available L-series type battery using their battery plates. The Mars 300 set also includes an accessory expansion plate, a shoe mount, and a USB Type-C cable.

Key Features

Transmits up to 1080p60 HDMI video
400′ line-of-sight transmission to receiver, 300′ to App
OLED display
Real-time app monitoring
Simultaneously transmit to one receiver and two apps, or to three apps
HDMI input and loop-out on transmitter for viewing on an on-board or another monitor
Dual HDMI outputs on receiver
Two antennas on transmitter
Power via L-series battery or USB Type-C input
1/4″-20 mounting threads

Categories: Live Streaming, Wireless Video Transmitters

Brands	Hollyland

Wireless Range	300′ / 91.44 m (Line-of-Sight) 400′ / 121.92 m (Line-of-Sight)
Channel Bandwidth	20 MHz
Frequency Range	5 GHz
Latency	< 0.1 sec
RF Power	≤ 21 dBm
RF Sensitivity	-80 dBm

Interfaces

Transmitter Antenna Ports	2x RP-SMA Female
Transmitter Video Connectors	1x HDMI Input 1x HDMI Loop Output
Receiver Video Connectors	2x HDMI Output
Transmitter Other I/O	1x USB-C Input
Receiver Other I/O	1x USB-C Input
Embedded Audio	HDMI: 2-Channel

Format Support

Video Format	HDMI: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080i at 50, 59.94, 60 fps 720p at 50, 59.94, 60 fps 576p at 50 fps 480p at 60 fps
Timecode Support	No

Display

Transmitter Panel Type	OLED
Receiver Panel Type	OLED

Power

Transmitter Battery Support	1x Sony L-Series / NP-F Type
Receiver Battery Support	1x Sony L-Series / NP-F Type
Transmitter Power I/O	1x USB-C (5 VDC at 2 A) Input
Receiver Power I/O	1x USB-C (5 VDC at 2 A) Input
Transmitter Power Consumption	Device: 5 to 12 VDC (11 W)
Receiver Power Consumption	Device: 5 to 12 VDC (6 W)

General

Transmitter Mounting	1x 1/4″-20 Female
Receiver Mounting	1x 1/4″-20 Female
Transmitter Dimensions	4.17 x 2.4 x 0.87″ / 10.6 x 6.1 x 2.2 cm (Without Battery Plate)
Receiver Dimensions	4.33 x 2.4 x 0.83″ / 11 x 6.1 x 2.1 cm
Transmitter Weight	0.38 lb / 172.5 g
Receiver Weight	0.4 lb / 189 g
